- 【Large Capacity】 The filling capacity of this horizontal pneumatic paste filling machine is 100-600ml /3.38-20.29oz, and it is equipped with a 40L/1366oz hopper. It can achieve a larger filling volume at one time. Its filling speed is 0-40 bottles/min, so it can finish filling tasks quickly.
- 【Arbitrary Control】 The whole filling process can be controlled, including the running speed of the cylinder, filling speed, filling volume, etc., so it can meet different demands for precise filling. The transfer of paste to the outlet is almost drip-free. Filling accuracy can be guaranteed at ±1%.
- 【Stainless Steel Structure】 The shampoo filling machine shell material is 201 stainless steel, the material of the hopper in contact with food is 304 stainless steel, so it has the advantages of corrosion resistance, rust resistance, acid and alkali resistance, etc. It can meet your long-term filling needs.
- 【Easy to Use & Clean】 Its simple structure can facilitate you to understand and master the operation method easily. Equipped with a foot switch to switch from pneumatic to point action mode. Easy to disassemble and more convenient to clean. Its switch is also removable, so it further ensures safety.
- 【Wide Application】 It is suitable for quantitative filling of liquid, paste and other substances in chemical, food, daily chemical, pharmaceutical, pesticide, cosmetics lubricant and other industries. Such as honey, chili sauce, tomato sauce, toothpaste, glass cement, etc.
Application
It is suitable for quantitative filling of liquid, paste and other substances in chemical, food, daily chemical, pharmaceutical, pesticide, cosmetics lubricant and other industries. Such as honey, chili sauce, tomato sauce, toothpaste, glass cement, etc.
Specification
- horizontal pneumatic paste filling machine：
- Model: G1WGD
- Color: Silver
- Material: Stainless Steel 304, 201
- Automatic Grade: Semi-automatic
- Driven Type: Pneumatic
- Voltage: 220/110V, 50/60Hz
- Filling Machine Size：109*37*38cm/42.91*14.57*14.96inch
- Filling Machine Weight: 35 kg/77.16lbs
- Machinery Capacity: 1000BPH
- Filling Material: Beer, Milk, Water, Oil, Juice, Sauce, Honey, Jam, Toothpaste
- Filling Accuracy: ± 1%
- Machinery Test Report: Provided
- Video Outgoing Inspection: Provided
- Single Package Size: 125*50*50 cm/49.21*19.69*19.69inch
- Single Gross Weight: 45 kg/99.21lbs
- Standard Export Package: Wooden Case or As Your Request for Paste Filling Machine
- Filling Range: 100-600ml /3.38-20.29oz
- Air Pressure: 0.6-0.8mpa
- Filling Speed: 0-40 bottles/min
- Control: Button Control Foot Pedal
- Certification: ISO9001
Hopper（with a lid）:
- Capacity: 40L/1366oz（Actual capacity is about 38L/1285oz）
- Hopper Material: 304 Stainless Steel
- Color: Silver
- Hopper Size: 40*40*48cm/15.75*15.75*18.9inch
- Hopper Tri-clamp Diameter：6.4cm/2.5inch
- Packing Size: 43*43*50cm/16.9*16.9*19.7inch
- Hopper Inside Diameter: 39.5cm/15.55inch

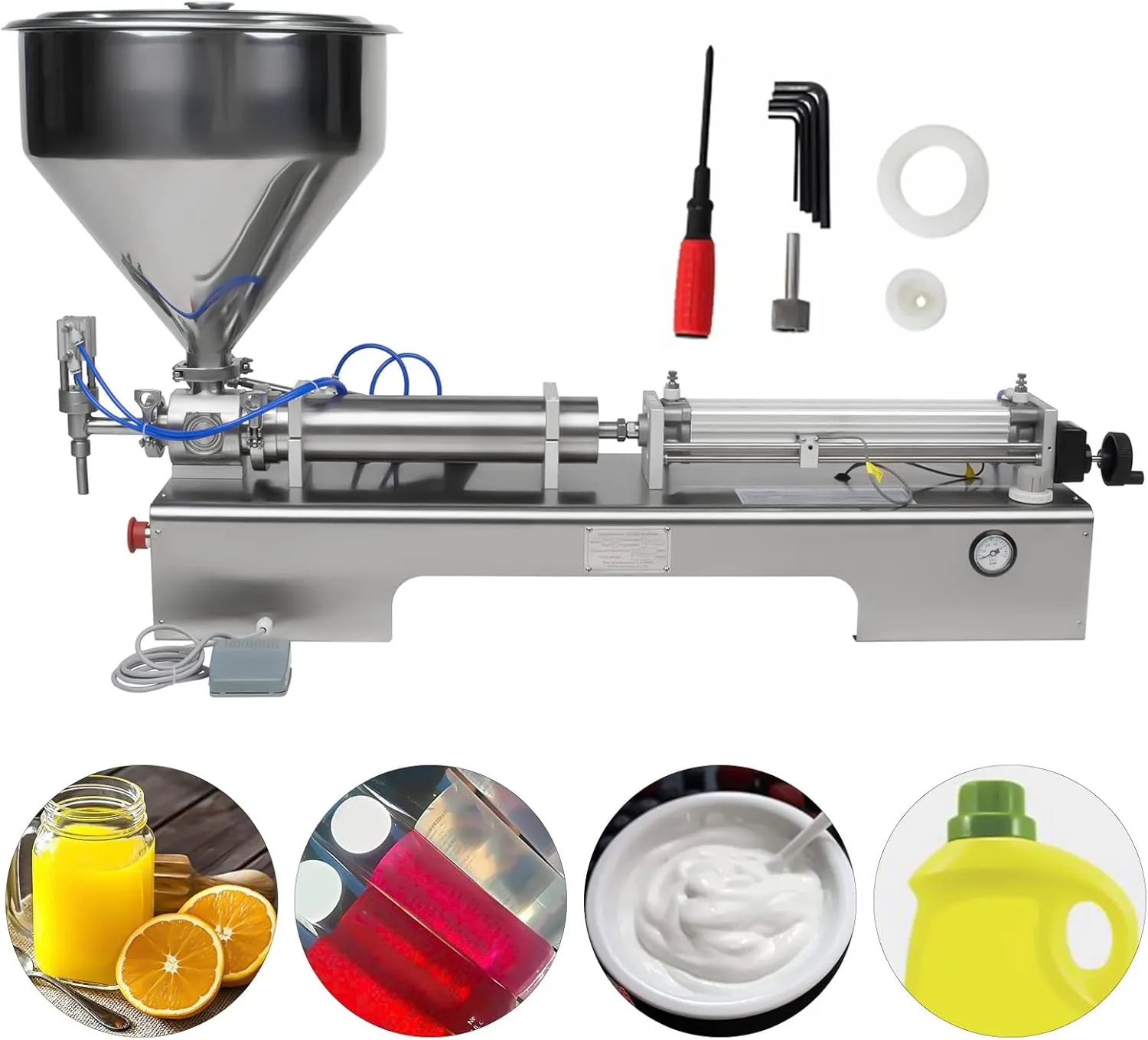

Package Included
- 1*Horizontal Pneumatic Paste Filling Machine
- 1*Hopper
- 1* Phillips Screwdriver
- 5*Hex Wrenches
- 1* Interchangeable Nozzle
- 11* Silicone O-rings
- 1* English Manual
Notes
Please allow slight color difference due to shooting light, and 1-3mm error due to manual measurement, please make sure you don't mind before ordering.
