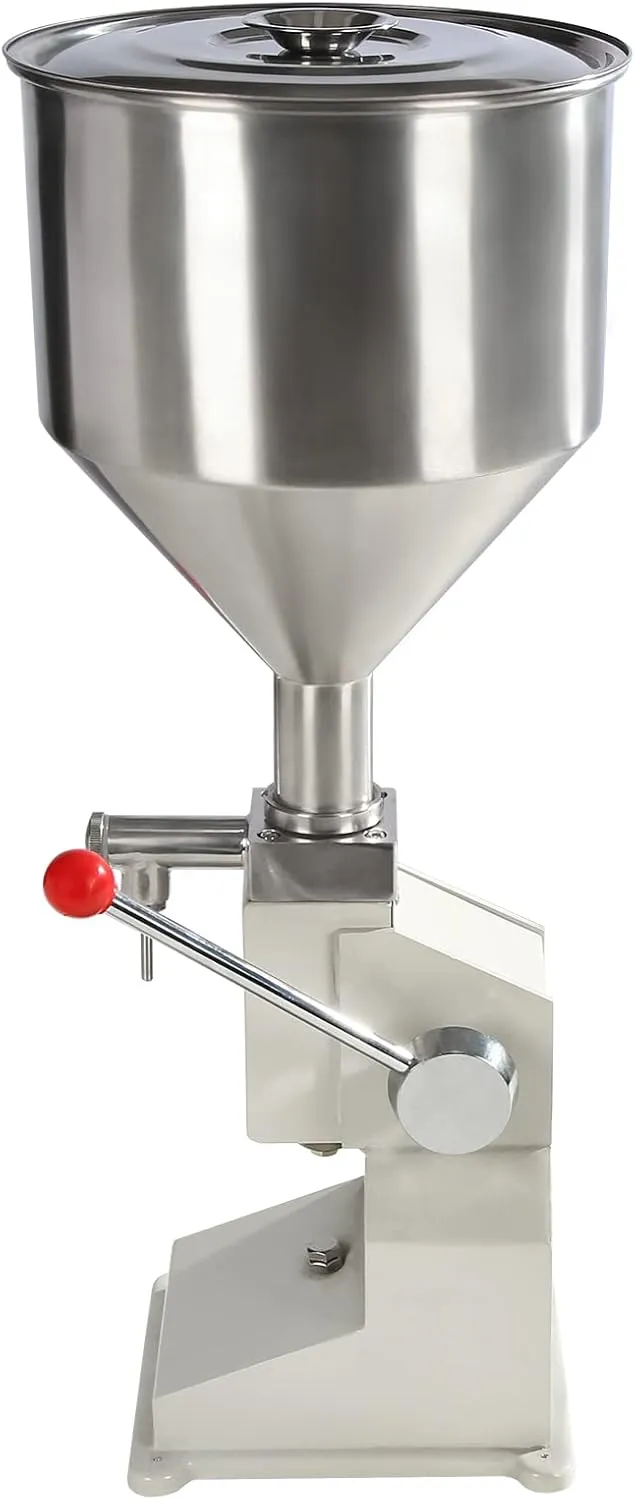

- Durable Material: The manual filling machine is made of 304 stainless steel, which is more durable than other metal materials. The 304 stainless steel is food grade, safe and reliable.
- High Efficiency: The filling speed of this manual filling machine can reach 0-20 bottles/min. You can finish more filling tasks in a short time, so it is ideal for the industry.
- High Precision: Compared with ordinary filling machines, the stroke of this filling machine is 5-50g/0.01-0.11lbs, which makes it more precise. Its filling accuracy is <1%, so you can use it with confidence.
- Large Capacity: The filling capacity of this filling machine reaches 10L/338.18oz, so it can complete more filling needs at one time, which saves more time and effort.
- Adjustable Filling Volume: There is a twist switch on the manual filling machine, so you can adjust the filling volume by turning the switch, which is very convenient.
- Easy to Operate: It has a relatively simple and visual construction, which makes it easier to get started. At the same time, the package is equipped with a detailed manual that you can use as a reference.
Specification
Material: 304 Stainless Steel, Iron
Color: Silver
Model: A03
Drive Type: Manual
Filling Stroke: 5-50g/0.01-0.11lbs
Hopper Volume: 10L/338.18oz
Filling Speed: 0-20 Bottles/Min
Filling Accuracy: <1%
Net Weight: 12kg/26.46lbs
Gross Weight: 14kg/30.86lbs
Suitable for: Liquid, Cream
Packing Size: 79*33*34cm/31.1*12.99*13.39inch
Product Size: 33*33*75cm/12.99*12.99*29.53inch
Package Included
1* Manual Filling Machine
1* Spring
1* Discharge Nozzle Piston
1 *Cone Cap
1 *0.24inch Filling Nozzle
1 *Knurled Nut
3 *Φ6 Flat Pads
2 *M6 Nuts
1 *Piston
1 *English Manual
Notes
1. It is recommended that you clean the machine before use.
2. Please note that this filling machine is not suitable for particularly thick pastes.
3. Please do not fill liquids with particles.
4. The machine is equipped with a 0.16inch filling nozzle. We additionally provide a 0.24inch filling nozzle in the package.
